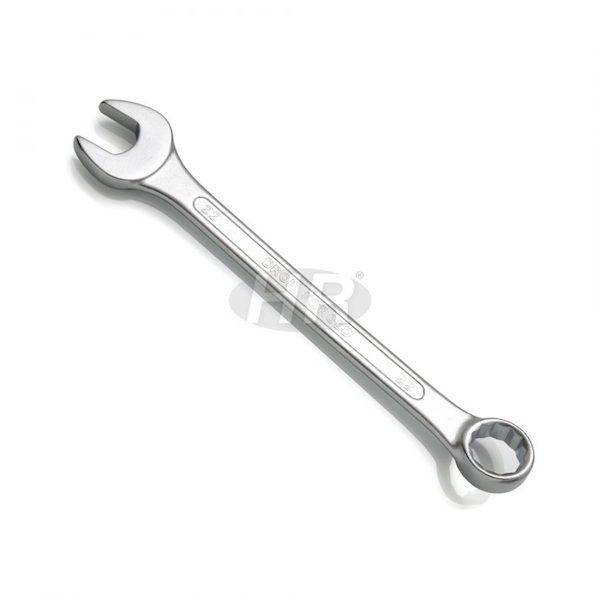

The range of these spanners, made of carbon steel, bring to you the unmatched quality.

Start WhatsApp Chat

Specifications

Article No. Size (mm) Size (inch) Length (mm) Qty./Ctn. (pcs.) Net Wt. (kgs) Gr.Wt. (kgs)
31206 6 1/4 100 1000 15.000 16.500
31207 7 110 1000 20.000 21.500
31208 8 5/16 120 800 20.000 21.500
31209 9 130 800 24.000 25.500
31210 10 3/8 140 600 24.000 25.500
31211 11 7/16 150 400 20.000 21.500
31212 12 160 400 24.000 25.500
31213 13 1/2 170 300 21.000 22.500
31214 14 9/16 180 300 24.000 25.500
31215 15 190 250 22.500 24.000
31216 16 5/8 200 200 22.000 23.500
31217 17 11/16 210 150 18.750 21.000
31218 18 220 150 21.000 22.500
31219 19 3/4 230 125 21.875 23.500
31220 20 240 100 20.000 21.500
31221 21 13/16 250 100 23.000 24.500
31222 22 7/8 260 80 19.600 21.000
31223 23 270 60 22.200 24.000
31224 24 15/16 280 60 19.200 21.000
31225 25 1 290 60 20.700 22.000
31226 26 300 60 22.800 24.500
31227 27 1.1/16 310 50 20.500 22.000
31228 28 1.1/8 320 50 23.500 25.000
31229 29 330 40 19.000 20.500
31230 30 340 40 20.000 21.500
31232 32 1.1/4 360 40 24.400 26.000

Sets

Set No. No. of pcs./set Size (mm) Qty./Ctn. (pcs.) Net Wt. (kgs) Gr.Wt. (kgs)
31280 5 8, 10, 12, 14, 17 60 19.200 21.000
31281 6 8, 10, 12, 13, 14 ,17 60 21.000 22.500
31282 8 6, 7, 8, 9, 10, 14, 17, 19 40 19.600 21.000
31283 8 8, 9, 10, 11, 13, 14, 17, 19 40 24.000 25.500
31284 9 6, 8, 10, 11, 13, 14, 15, 17, 19 30 20.700 22.000
31285 12 6, 7, 8, 9, 10, 11, 12 ,13, 14, 17, 19, 22 25 22.500 24.000
31286 14 8-17, 19, 21, 22, 24 15 24.600 26.000
31287 17 6-22 ( All Sizes) 15 25.200 27.000
31288 25 6-28, 30, 32 4 20.400 22.000
31289 26 6-30, 32 4 22.340 24.000
